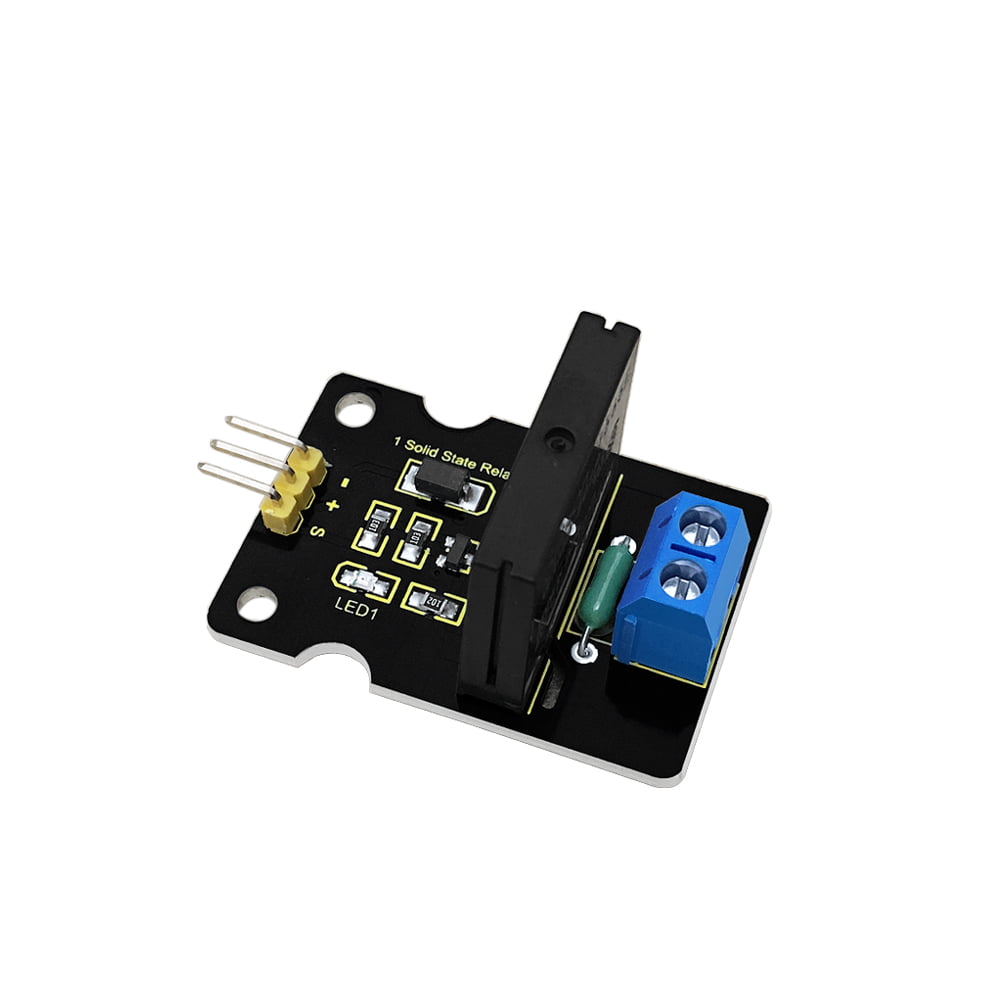

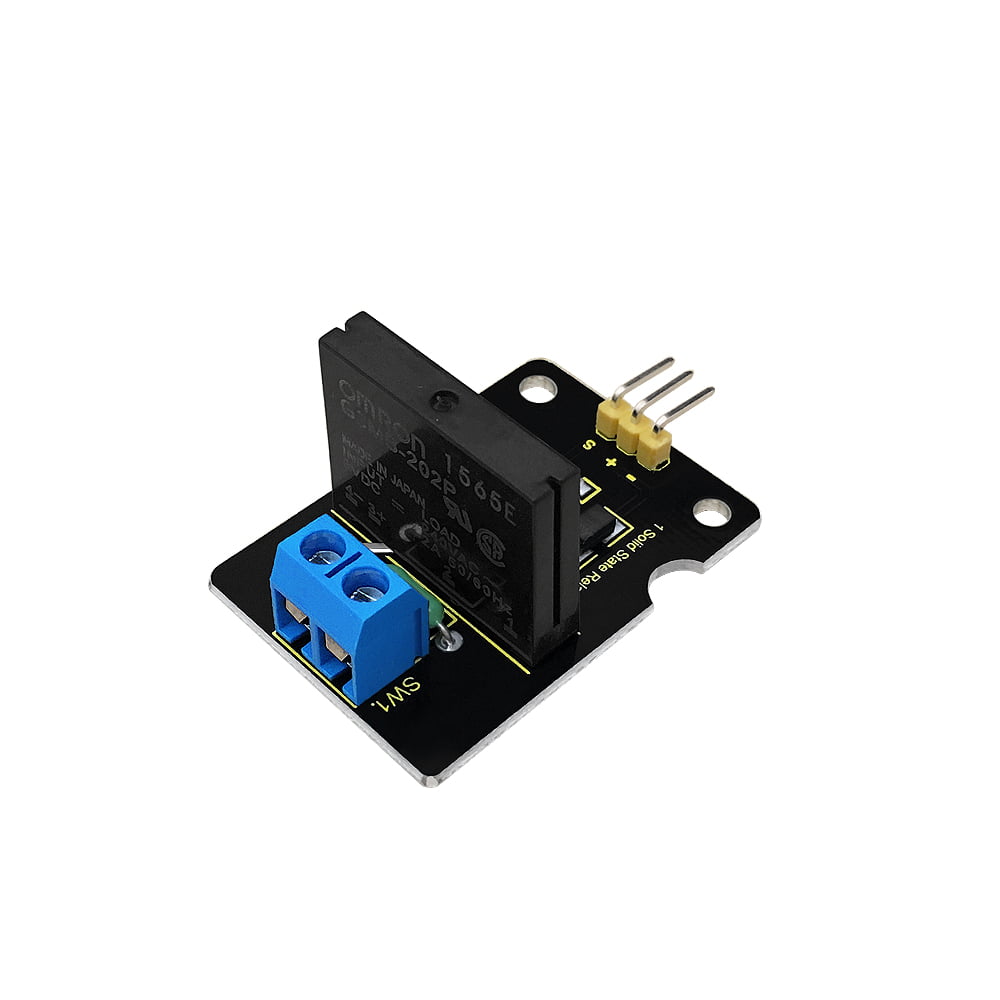

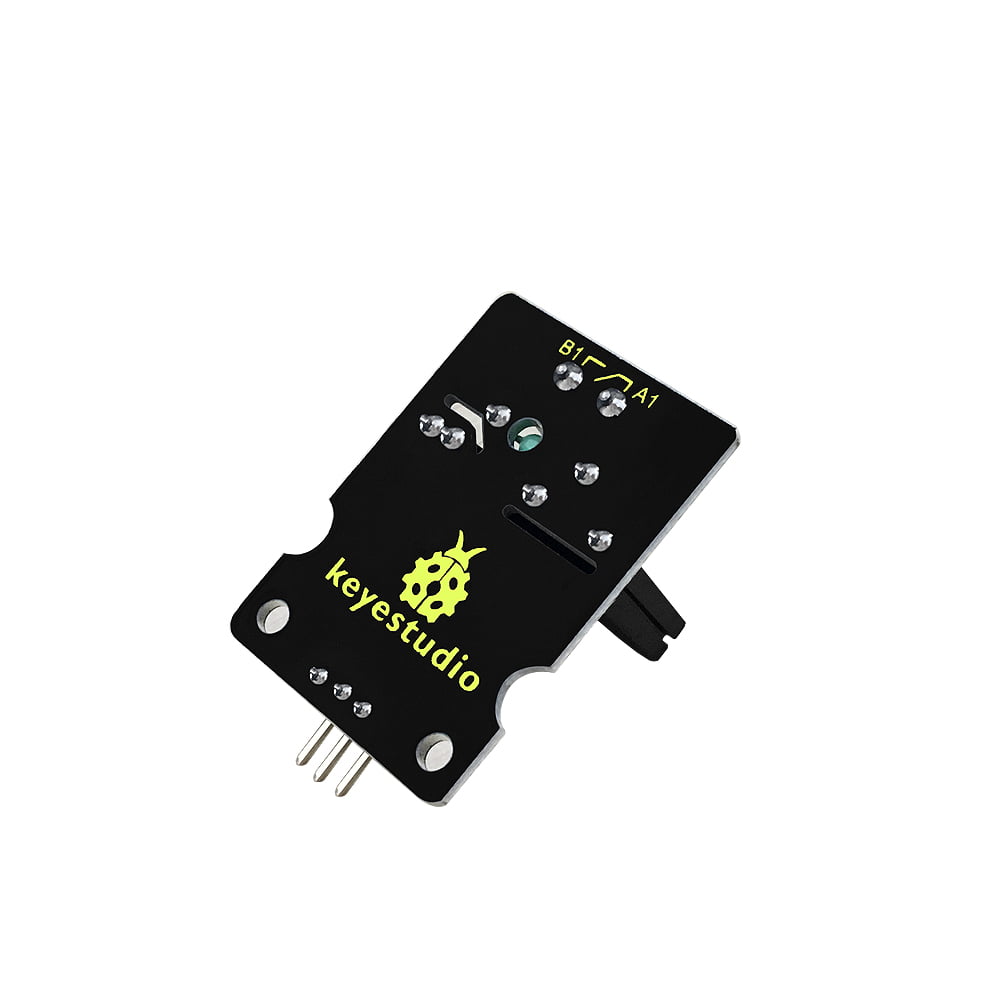

Keyestudio single solid state relay is active at LOW level, that is to say, the input control signal is the low level (0-1.5 V), the relay is on; while the input control signal is high level (3-5 V), the relay is off.
Solid State Relay is a new kind of contactless switching device, which is composed of all solid state electronic components.
Compared with the electromagnetic relay, it has higher reliability, with the features of non-contact, long service life, fast speed and less outside interference.
![4 Keyestudio Single One Channel Solid State Relay - Research Knowledge](https://www.why.gr/wp-content/uploads/2021/01/4-4.jpg)
Specification
Voltage | Static Current | Working Current | Trigger Voltage | Trigger Current |
---|---|---|---|---|
DC 5V | 0mA | 12.5mA | 0-1.5V | 2mA |
Output port: AC 100V/2A
