Name: Training Factory Industry 4.0 24V Complete Set with PLC S7-1500
SKU: 799840
Price: 14375.00 EUR
Availability: InStock

Training Factory Industry 4.0 24V Complete Set with PLC S7-1500

€17.825,00 incl. VAT

Including PLC Siemens S7-1500, basic programme and ready-made cabling
Enables in-depth learning through haptic grasping on a realistic production image
Digital traceability through NFC/RFID, remote monitoring via camera, sensory applications
Integrated cloud connection with dashboard, control via smart devices, own cloud and dashboard can be integrated, Raspberry Pi 4 with Node-RED ; Communication via OPC/UA and MQTT
Dimensions of the model incl. base plate: 114 x 74 x 34 cm

To the e-learning –>

SKU: 799840 Category: Fischertechnik

Training Factory Industry 4.0 24V Complete Set with PLC S7-1500

The fischertechnik learning environment is used for learning and understanding industry 4.0 applications in vocational school and training and for use in research, teaching and development at universities, in companies and IT departments. The simulation depicts the ordering process, the production process and the delivery process in digitized and networked process steps.

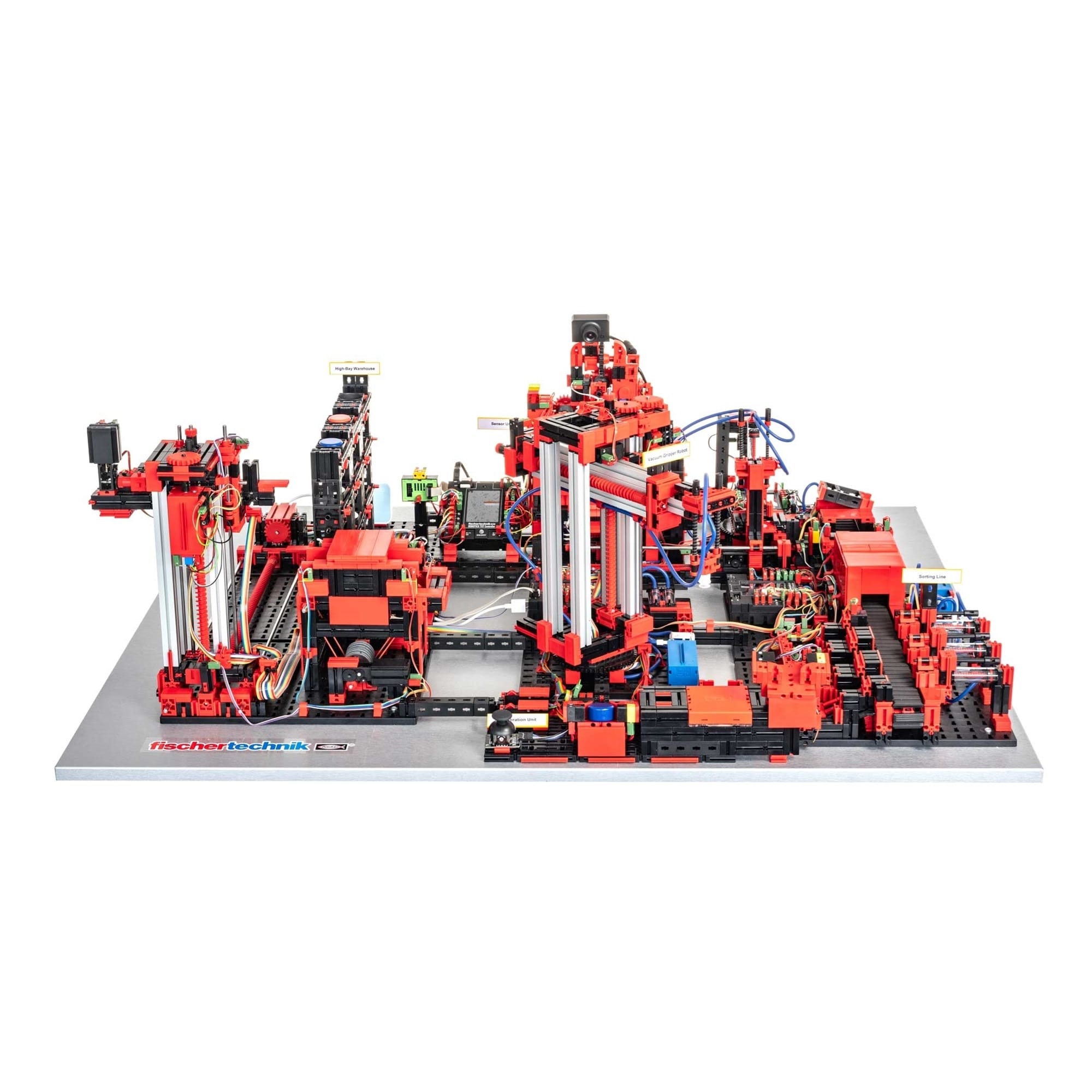

Factory photo

The Training Factory consists of the factory modules storage and retrieval station, vacuum gripper robot, high-bay warehouse, multi-processing station with oven, a sorting line with colour detection, an environmental sensor and a swivelling camera. After delivery of raw materials, they are stored in the high-bay warehouse and after ordering in the dashboard, the workpieces pass through the respective factory modules and the current status is immediately visible in the dashboard.
The integrated environmental sensor reports values for temperature, humidity, air pressure and air quality. Due to the vertical and horizontal swivel range, the camera can see the entire plant and can therefore be used for web-based remote monitoring.
The individual workpieces are tracked by NFC (Near Field Communication): each workpiece is given a unique identification number (ID). This enables the current status of the workpieces in the machining process to be tracked and made visible.

Control

There are three different versions of the fischertechnik Training Factory Industry 4.0 24V, which differ in the scope of delivery of the controller. This variant is the “plug and play” solution. Here, the control unit is included and everything is already wired.
The Training Factory 4.0 24V Complete Set with PLC S7-1500 is controlled by a Siemens S7-1500. This is included in the scope of delivery. Both the model and the PLC are pre-wired so that the PLC can be conveniently connected to the model via two connecting cables. A ready-written example programme (as structured text, ST) is included in the scope of delivery. The programme was created on the basis of a Siemens S7-1500 and was written in Siemens TIA Portal V.16.
A fischertechnik TXT controller is also installed. This is supplied with power via the adapter board and provides the connection to the fischertechnik cloud. The TXT controller also communicates in MQTT to the IOT gateway (Raspberry Pi), which in turn translates in OPC-UA to the PLC controller. In this way, the 9V-based components such as the environmental sensor, the USB camera, the brightness sensor and the NFC reader can be addressed via the MQTT interface and read out by the PLC. Even more interesting, however, is another function of the IOT Gateway, namely the possibility of an optional connection to a separate cloud. Thus, Training Factory 4.0 offers maximum flexibility for the respective user.

Software

The PLC program for controlling fischertechnik Training Factory Industry 4.0 was created as structured text (ST) based on a Siemens S7-1500 and can be called up in the eLearning portal. It can also be viewed, used and downloaded free of charge at Github.com/fischertechnik.
Of course, the Learning Factory can also be controlled with other PLC models and brands and individual solutions can be programmed and implemented by the user. It may be necessary to make small adjustments to the example program, which can then be implemented independently.

fischertechnik Cloud

The connection to the fischertechnik cloud is established via the WLAN router which is integrated in the learning factory. The use of the Chrome or Firefox web browsers is recommended. www.fischertechnik-cloud.com.
The servers of the cloud are located in Germany and ensure that the strict European requirements apply for the storage of data. Personal data is protected in an account with password access, which uses the very secure “OAuth2” industry standard. All data sent to the cloud is encrypted with certificates (https standard).

2 Dashboards, Raspberry Pi
