Name: Ceramic Fiber Muffle Furnace
SKU: 313002
Price: 1774.19 EUR
Availability: InStock

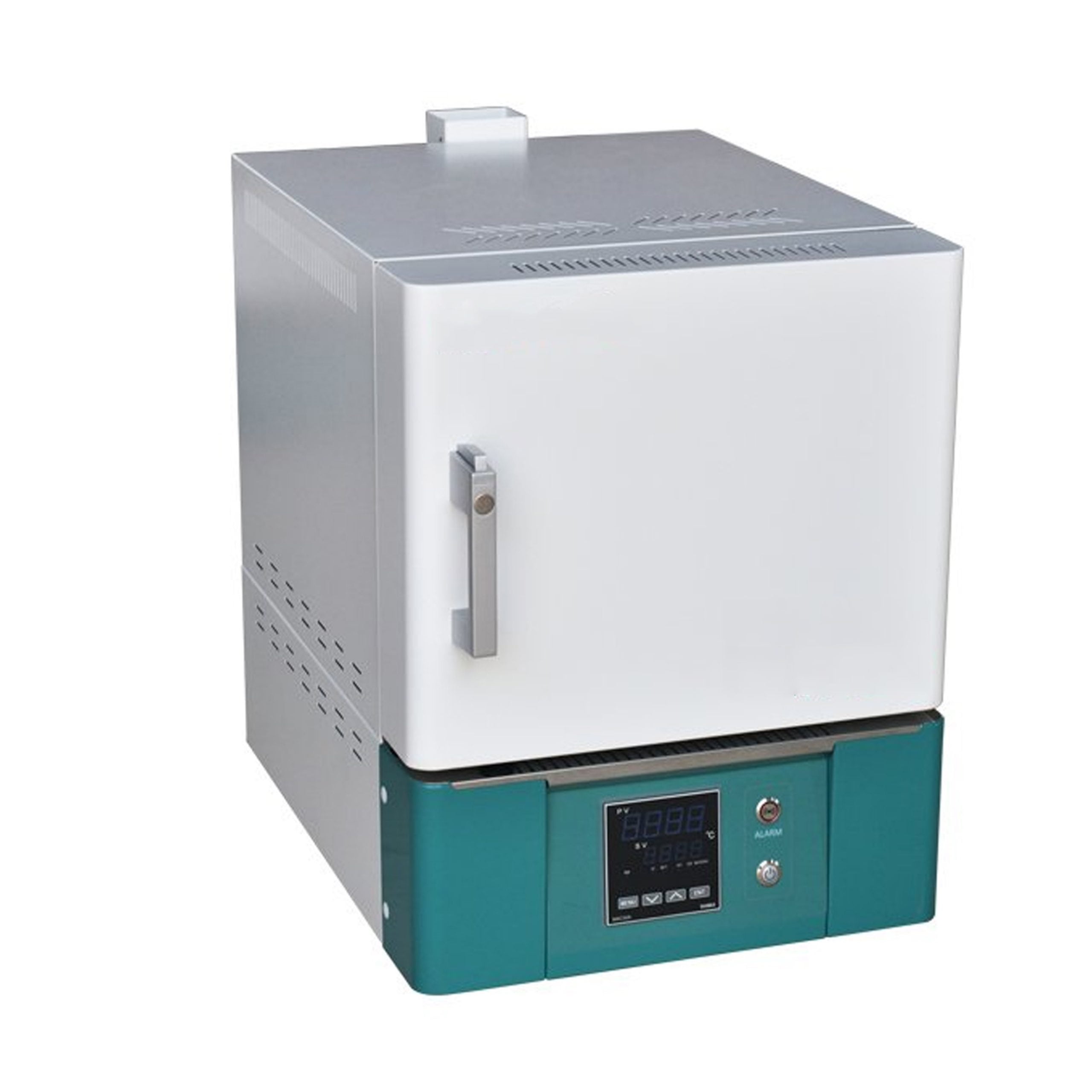

Ceramic Fiber Muffle Furnace

€2.200,00 incl. VAT

* External material: cold-rolled steel with anti-bacterial powder coating and internal material: imported high density ceramic fiber. All stainless steel glory hole,make sure the color not change.

* Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Heating rate is about 60℃/min.

* Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.

* PID micro digital screen controller,over-temperature alarming and auto-stop.

* Safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.

* Double-shell hollow thermal insulation,the shell not hot and the furnace internal cool quickly.

Ceramic Fiber Muffle Furnace

Imported high density ceramic fiber.
It adopts the platinum rhodium thermocouple and import heating elements which has sensitive response, controls temperature with high precision and has good thermal endurance.
Dual Ceramic Inner Chamber, hollow heat insulation and good ventilation ensure that outer shell is not hot and the inner shell can cool down quickly, by which the temperature can go up and down quickly.
It has various safety protection measures as, thermocouple failure and over temperature protection to avoid accidents occurring.
Heating rates is about 60 degree per min and cooling rate is about 5 degree per min.
Furnace door and furnace mouth which adopt stainless steel material don’t change color in high temperature.

Specifications

Capacity: 2L
Temperature Range：100-1200℃
Heating Rate：20℃
Cooling rate：5℃
Inner chamber：ceramic fibers
Heating method: Alloy wire heating in three side left, right, top side
Voltage：110V 60Hz / 220V 50Hz
External chamber: Stainless steel
Inner chamber dimensions: 120x200x80
Sensor: High precision K type sensor
